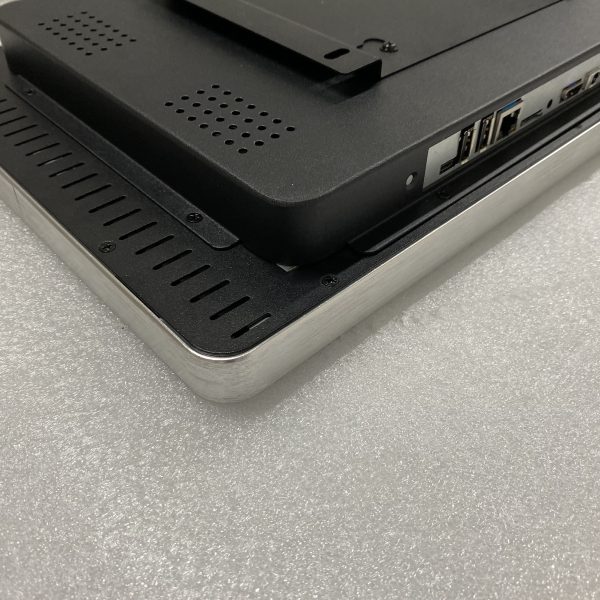

High Brightness 15 Inch Outdoor LCD Display Screen

Contact us to check freight cost

High Brightness
Brightness could reach 1000nits, always used for outdoor and direct sunlight readable
Multipal Signal Input Is Optional
Support VGA, HDMI, DVI, BNC, USB, Audio, and SDI optional, thus could meet more requirements of clients to apply various equipment.
Touchscreen Is Optional
Resistive, capacitive, IR is optional for clients. Also accept custom made when have other requirements.

Multi-Mount Type
clients could choose mount way freely such as vesa mount, panel mount, desktop, open frame and embeded. Suitable for more applications.

  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
  • Fast Delivery
  • Techinical support

High Bright 15 Inch Outdoor LCD Display Screen

High bright series products enhance display application readability in terms of brightness, dimming range and viewing pleasure. With the new technology of adoption LED as the light source for the backlights, we provide you an new alternative to the traditional backlight display. SHB (Super High Brightness) backlight technology provides wider dimming range, lower power consumption.
LMB150WM with over 1000nit brightness can be used for special mounting applications, especially in POS, kiosk, In-Car TV/Computer, Mobile PC, Marine field etc.

TECHNICAL SPECIFICATIONS:

Model No. LMB150WM-S
Panel Type 15″ TFT LCD(4:3)
Active Display Area 304.1(H)mmx228.1(V)mm
Brightness 1500cd/㎡
Contrast Ratio 700:1(typ.)
Resolution 1024X768
Response Time 8ms
Viewing Angle (H)-85~85 ;(V) -80~80
Input Signal VGA, BNC/RCA(NTSC/PAL Composite Video), HDMI, DVI, DP, USB, SDI(optional)
Touch Screen resistive, capacitive, IR is optional
Power Input DC9-36V
Operating Method 5 keys keypad OSD or Remote
Power Consumption Max.45W
Case Material Alumium/Cool rolled steel
Net Weight 4.8kg

LCD Monitor Display SPECIAL FEATURES:

Outdoor and direct sunlight readable
Rugged construction ensures long-lasting durability
High brightness and contrast ratio
Low power consumption
Wide dimming range to meet the dim-to-black requirement
Better viewing angle compare to regular LCD
Wide range operational temperatures
Customized construction for different applications
High performance and programmable sharpening filters with Noise Coring
