12.3 inch Stretched Bar Lcd Display Screen

Contact us to check freight cost
  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
  • Fast Delivery
  • Techinical support

12.3 inch Stretched Bar Lcd Display Screen

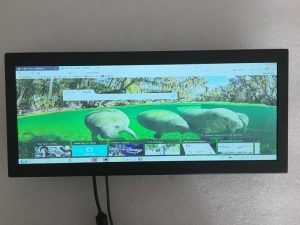

Bar lcd display is also called ultra-wide displays or just stretched displays. it is a relatively new format in the digital signage arena. The product has allowed digital signage to be used in a range of new applications such as theatre subtitles and surtitles, shallower menu boards and in any public display with constricted space like on narrow pillars where the screens can be used in portrait.


Module number SLM122BC
Resolution 1920X720
Dot pitch 0.05075(H)X0.15225(V) mm
Active Area 292.32 (W)X109.62(H) mm
View angle R/L/U/D 85/85/85/85(Deg)
Pixel Arrangement RGB-stripe
Surface Treatment hard coating
Electrical Interface LVDS
Brightness 800(cd/m2)
Contrast ratio 700:1
Outline dimension 308.1(W)X134.86(H)X6.5(D) mm
Weight 466g
Backlight LED
Display mode IPS, Normally BLACK
Operate temperature -30~85℃
Storage temperature -40~95℃
Display Colors 16.7M
Power Supply Voltage 3.3v(Typ.)


Outdoor and direct sunlight readable
Rugged construction ensures long-lasting durability
High brightness and contrast ratio
Low power consumption
Wide dimming range to meet the dim-to-black requirement
Better viewing angle compare to regular LCD
Wide range operational temperatures
Customized construction for different applications
High performance and programmable sharpening filters with Noise Coring
Easy Operation on multi-language

· Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
· Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
· Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
· Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
· Non-profit Organizations: Telecommunications, post offices, hospital, schools;
· Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
· Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
