HIGHT BRIGHTNESS SERIES products enhance display application readability in terms of brightness, dimming range and viewing pleasure. With the new technology of adoption LED as the light source for the backlights, we provide you an new alternative to the traditional backlight display. Samying(Horap) SHB (Super High Brightness)Â backlight technology provides wider dimming range, lower power consumption.
 LMB121WM with over 1000nit brightness can be used for special mounting applications, especially in POS, kiosk, In-Car TV/Computer, Mobile PC, Marine field etc.
High Bright LCD Monitor Display Technical Specifications:
| Model No. | LMB121WS |
| Panel Type | 12.1″ TFT Color LCD |
| Active Display Area | 261.1(H)mmx163.2(V)mm |
| Brightness | 1000cd/㎡ |
| Contrast Ratio | 700:1(typ.) |
| Resolution | 1280X800 |
| Response Time | 16ms |
| Viewing Angle | 160/140(H/V) |

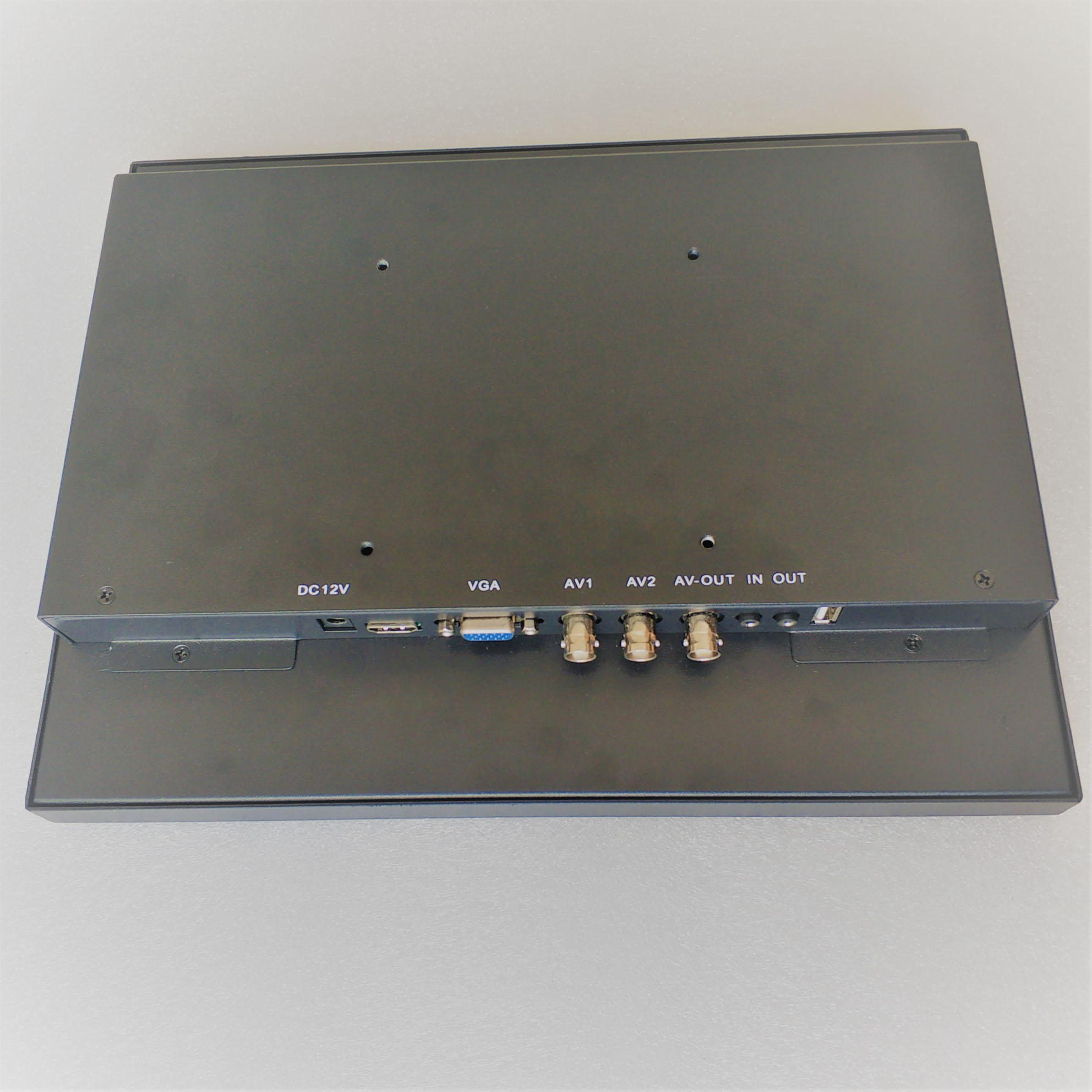

| Input Signal | VGA, BNC/RCA(NTSC/PAL Composite Video), HDMI, DVI, DP, USB, SDI(optional) |
| Touch Screen | resistive, capacitive, IR is optional |
| Power Input | DC12V |
| Operating Method | 5 keys keypad OSD or Remote |
| Power Consumption | Max.20W |
| Case Material | Alumium/Cool rolled steel |
| Net Weight | 1.7kg |
High Brightness LCD Monitor Applications:
· Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
· Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
· Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
· Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
· Non-profit Organizations: Telecommunications, post offices, hospital, schools;
· Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
· Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
