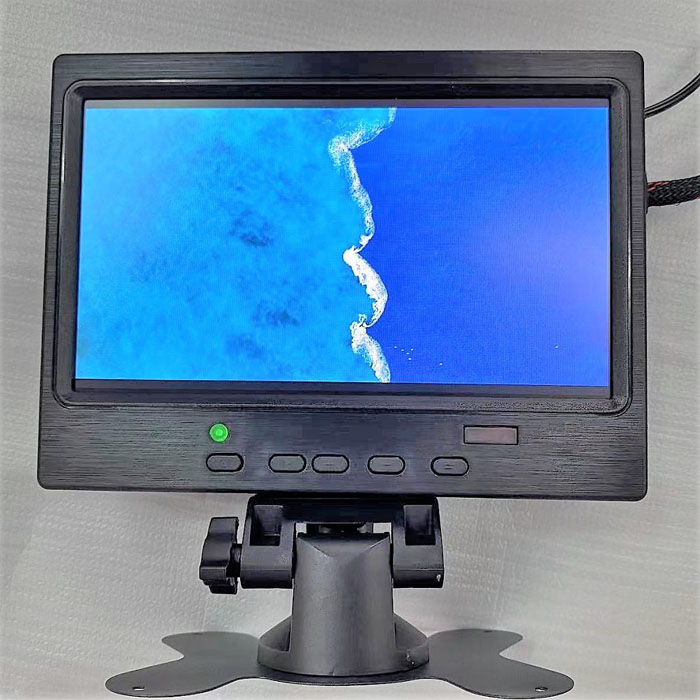

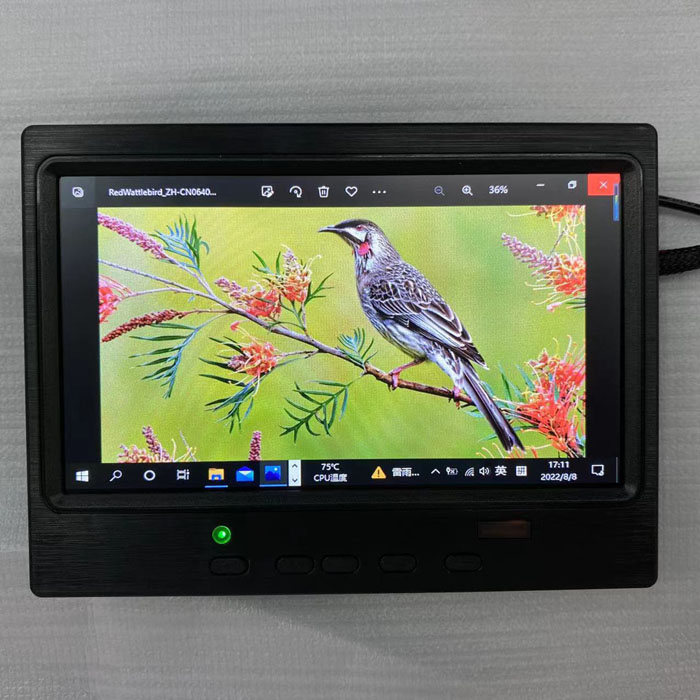

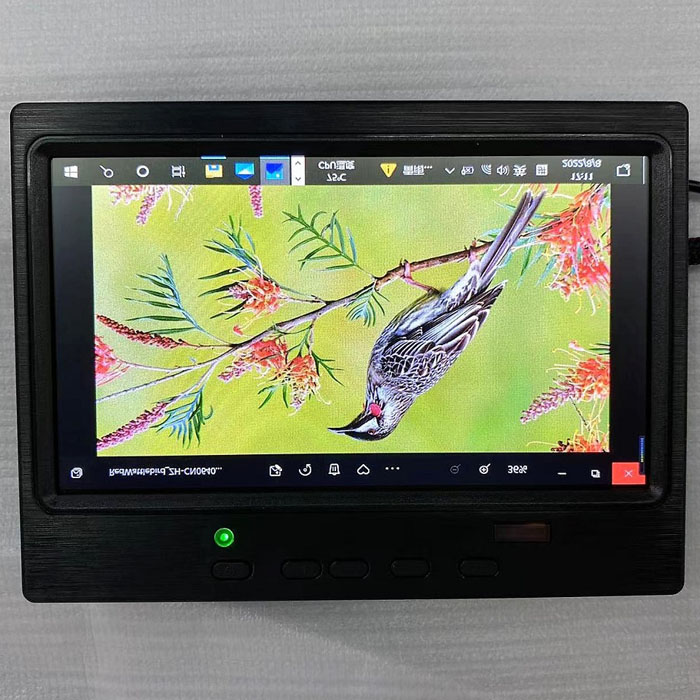

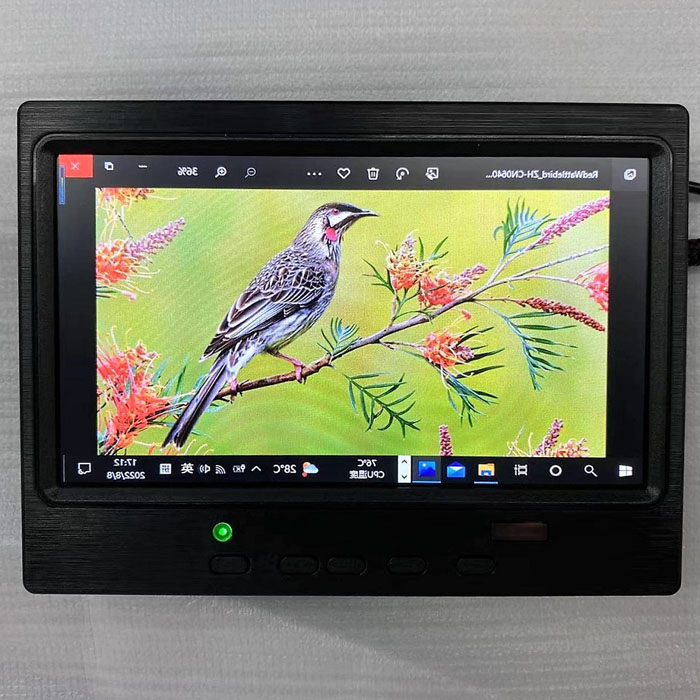

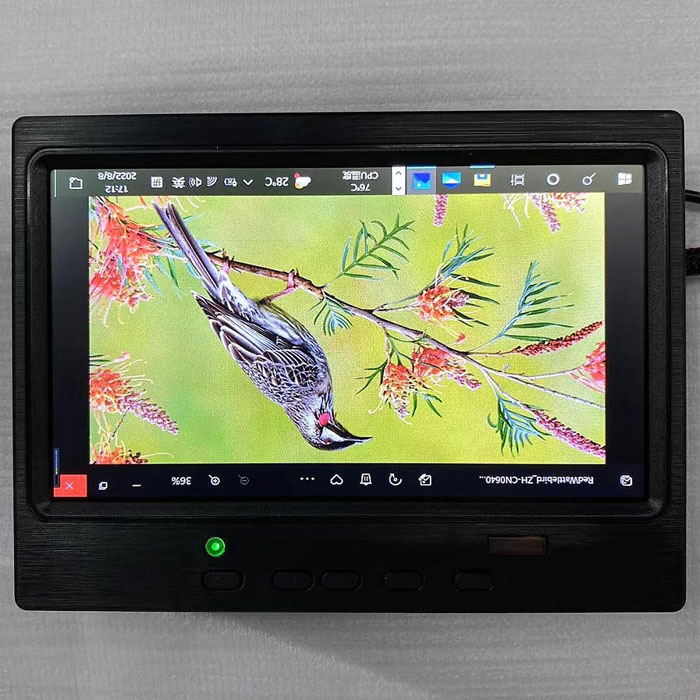

7 Inch CCTV Video LCD Display BNC

Contact us to check freight cost
  • No-Risk Money Back Guarantee!
  • No Hassle Refunds
  • Secure Payments
  • Fast Delivery
  • Techinical support



Rugged construction ensures long-lasting durability with professional high purity Color filters
Excellent Brightness and Contrast
3-D video noise reduction
Motion adaptive 3-D comb filter
High-quality dual scaling engines & dual 3-D video de-interlacers
Specific high performance picture/color processing engine
Applicable to all surveillance system
High performance and programmable sharpening filters with Noise Coring
Easy Operation on multi-language OSD

Inch Lcd Tft Color Monitor Display Video Audio Bnc Technical Specifications

Model No. LMC070S
Panel Type 7″ TFT Color LCD
Active Display Area 154.1×85.9mm
Brightness 250cd/㎡
Contrast Ratio 500:1(typ.)
Resolution 800×480/ 1024*600 optional
Response Time 8ms
Viewing Angle 120/110(H/V)

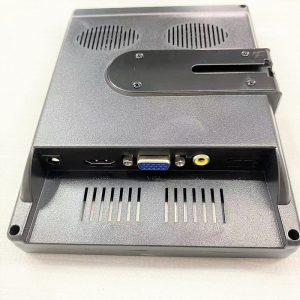

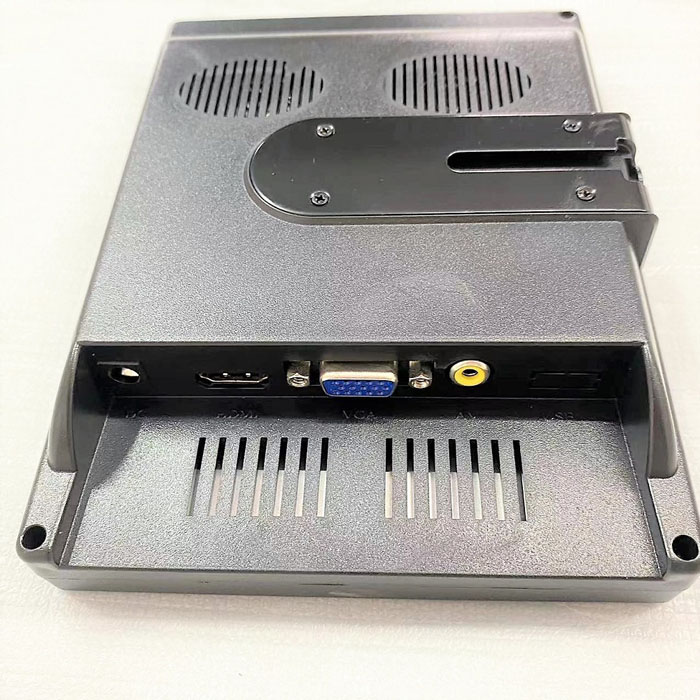

Input Signal VGA, NTSC/PAL Composite Video, BNC/RCA, HDMI, USB
Touch Screen resistive, capacitive, IR is optional
Power Input DC12V/DC9-36V, AC110V-240V

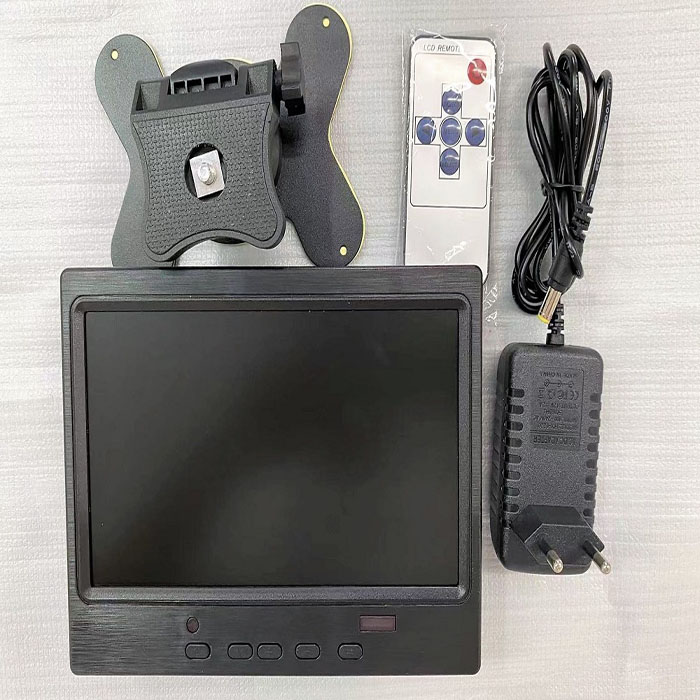

Operating Method 5 keys keypad OSD or Remote
Power Consumption Max.15W
Case Material Plastic/Cool rolled steel
Net Weight 1.1kg

· Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, etc.
· Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
· Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
· Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
· Non-profit Organizations: Telecommunications, post offices, hospital, schools;
· Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
· Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
