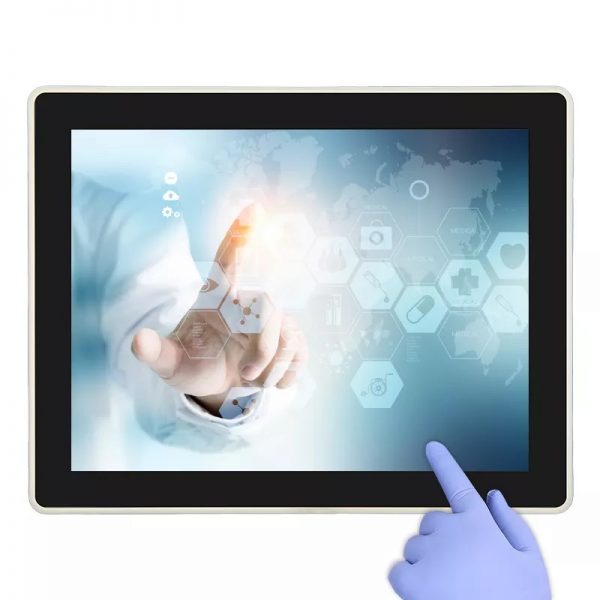

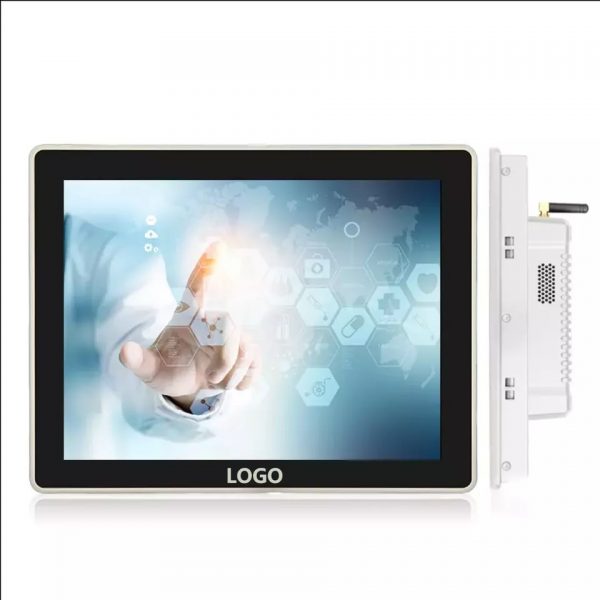

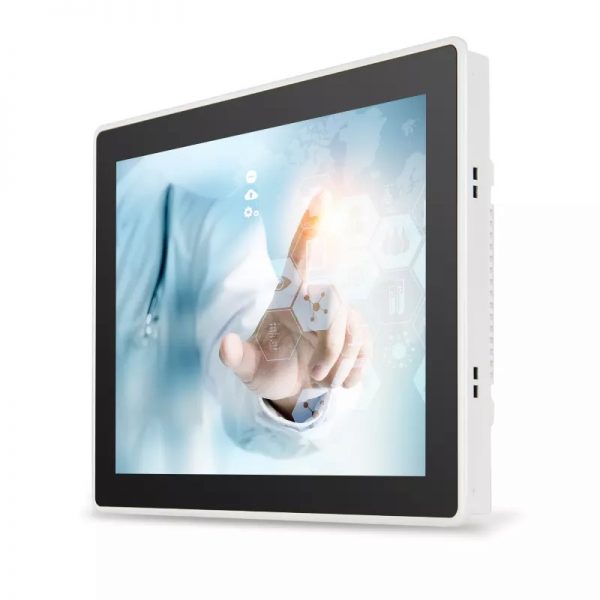

19 Inch Waterproof Marine LCD Monitor
Waterproof IP65
embedded structure, aluminum material front cover, toughened glass or 3H waterproof touch screen fixed on panel front. In front side, waterproof marine lcd monitors are completely up to the IP65 standard. Designed specially to be applied in marine vessels, oil tankers, cruise ships, maritime operations and other maritime equipment.
High Brightness Optional
Clients also could choose high brightness, and support to adjust by keyboard for both outdoor and indoor.
Wide Voltage DC9V~36V
standard is DC9V~36V, AC 110~240V, could meet requirements of different voltage requirements.
Product Parameter of 19 inch waterproof marine lcd monitor
| Model No. | LBS190PM |
| Panel Type | 19″ TFT Color LCD |
| Active Display Area | 376.3(H)mmx301.1(V)mm |
| Brightness | 300cd/㎡ 1000cd/㎡ (optional) |
| Contrast Ratio | 1000:1(typ.) |
| Resolution | 1280*1024 |
| Response Time | 5ms |
| Viewing Angle | 80/80; 80/80(H/V) |
| Input Signal | VGA， NTSC/PAL Composite Video, BNC/RCA, HDMI, USB |
| Touch Screen | resistive, capacitive, IR is optional |
| Power Input | DC9-36V, AC110V-240V |
| Operating Method | 5 keys keypad OSD or Remote |
| Power Consumption | Max.40W |
| Case Material | Front: Alumium Rear:Cool rolled steel |
| Protection Level | Front IP65/Full IP65 optional |
| Net Weight | 5.9kg |
