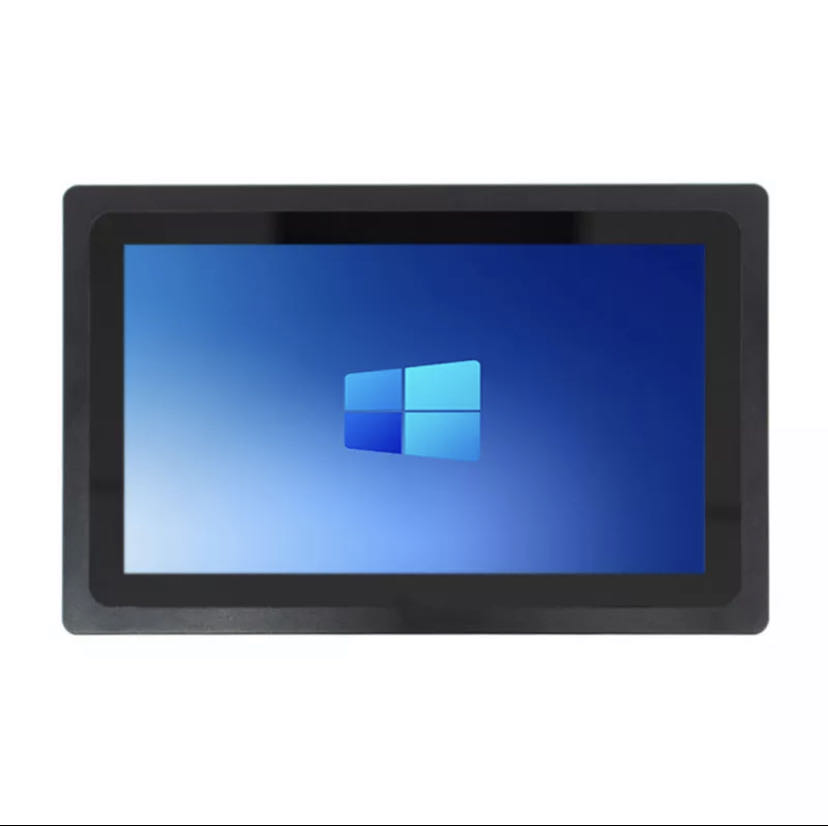

Touch Screen 15 inch Industrial Panel PC, Embedded All in One Industrial PC
Industrial panel pc are used in industrial occasions, and are adopted by industrial computers. They can adapt to wide temperature environment, harsh environment and long-term and high-load work according to requirements.
Features
1. Sturdy and durable aluminum Alloy front bezel + High strength cold rolled steel back case.
2.Industrial LCD panel, wide viewing angle, high 1000nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
4. High performance motherboard, 7×24 continuous operation.
5. Full sealed and fanless design, full IP65 waterproof , sunlight readable.
| System |
| Processor |
Onboard Intel Atom D2550 dual-core 1.86GHz processor(TDP6.5W),Secondary cache 1M |
| Chipset |
Intel NM10 (TDP2.1W) |
| Memory |
DDR3 2GB memory(Standard configuration) |
| Disk |
Support SATA 2.5 “SSD, HDD and mSATA |
| Display |
Intel GMA3600 512MB shared video memory, supports synchronous, asynchronous dual display |
| Ethernet port |
2 RTL8111E10/100/1000Mbps RJ45port |
| Wireless |
1 Mini-PCIe slots, scalable 3G, Wifi wireless card |
| Audio |
Realtek ALC662 Audio Controller |
| USB |
4 USB2.0 ports rear, with electrostatic protection 8KV |
| Serial port |
6 Rs232 serial ports(COM5, COM6 optional 485) |
| Watchdog |
Programmable from 1 to 255 seconds |
| Institutional |
| Front Panel |
Magnesium alloy die-casting, surface using PET foil, meet the NEMA IP65 degree of protection |
| Box structure |
High-strength sheet metal structure, high temperature paint handling, cover a large area designed
finned heat sinks |
| Mounting |
Panel mounting,VESA mounting |
| Color |
Flash silver |
| Power Input |
DC12V input, with reverse polarity protection measures |
| Overall size |
395×313×82mm(W×H×D) |
| Case Size |
373×297×76mm(W×H×D) |
| Hole Size |
376×300mm(W×H) |
| Weight |
4.15kg |
| LCD |
| Size / Type |
15 inch XGA TFT LCD |
| Resolution |
1024×768 |
| Maximum color |
16.7M |
| Display area |
304.128×228.096mm |
| Reaction time |
8ms |
| Backlit |
LED |
| Backlit MTBF |
50,000hours |
| Brightness |
300cd/sqm |
| Contrast Ratio |
800: 1 |
| Lattice |
0.297×0.297 |
| Max view angle |
(H)100/(V)120 |
| Touch Screen |
| Size/Type |
15 inch five-wire analog resistive temperature |
| Resolution |
4096×4096 |
| Reaction time |
<5ms |
| Surface hardness |
3H |
| Click life |
250g efforts, 35 million times |
| Stroke life |
250g efforts, 5 million times |
| Transmittance |
More than 81% |
| Environmental |
| Working temp. |
-20~+60℃(Electronic disk) |
| Storage Temp. |
-30~+80℃ |
| Relative humidity |
10~95%@40℃(No condensation) |
| Vibration |
50~500Hz,1.5G,0.15mm Peak to peak |
| Shock |
10G/peak(11ms sec) |
