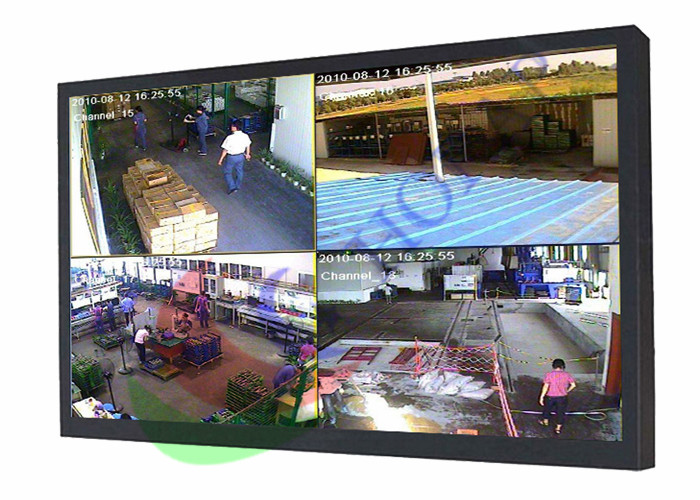

FHD 21.5 Inch Security System LCD Monitor
1.Full real-time display , videos from 4pcs cameras can be displayed on a screen
2.Support mixed input of AHD1080P, AHD 720P, 960H , CVBS
3.Compatible with NTSC/PAL system
4.High quality resolution 1920x1080P ( include video input, recording resolution )
5.4ch cameras can record and store videos simultaneously
6.Support video display mode modification , such as H , QUAD, 3 split mode , dual split mode , etc.
7.Support 4chs synchronous online video playback, pause, fast forward, fast back and other operations are available
8.When the storage capacity is full, videos will be overwritten automatically
9.Support video files locking function, and locked files won’t be overwritten and deleted
10.As for each video source , brightness, contrast, saturation, color and sharpness can be adjusted independently
11.Independent adjustment of left and right mirror, up and down / 90 degree / 270 degree rotation for each channel .
12.Support open or close the overlay display information, such as time, date, channel character, etc.
13.Support IR remote controller operation
14.With automatic trigger function, reversing light , high beam, brake light , etc. correspond to some operations.
15.Real-time video storage technology, even if the power is off suddenly, the video files won’t be lost
16.Independent setting and adjustment of auxiliary line , when encounters barriers, the driver can adjust the auxiliary line based on the vehicle width, to make a decision whether the car can pass the barriers successfully .
17.As for video output, zoom display of top, bottom, left and right margins can be adjusted , to ensure that images can be displayed totally.
18.Power-off memory function, if the power is off suddenly, the last setting screen will be displayed when the power restores.
Product Parameter of FHD 21.5 Inch Security System LCD Monitor
| Model No. | LMC215S |

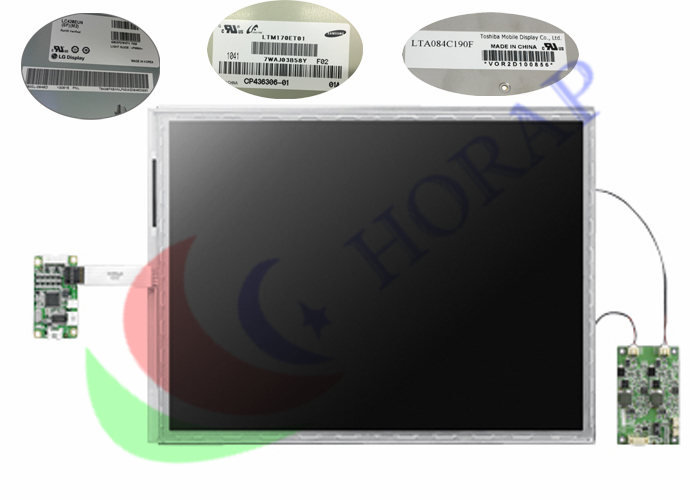

| Panel Type | 21.5″ TFT Color LCD |
| Active Display Area | 477.0(H)× 268.5(V)MM |
| Brightness | 250cd/㎡ |
| Contrast Ratio | 1000:1(typ.) |
| Resolution | 1920*1080 |
| Response Time | 5ms |
| Viewing Angle | 170/170(H/V) |

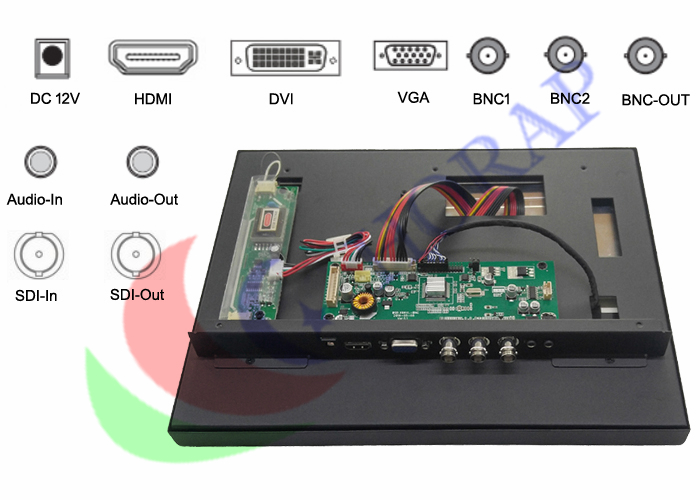

| Input Signal | VGA， NTSC/PAL Composite Video, BNC/RCA, HDMI, USB |
| Touch Screen | resistive, capacitive, IR is optional |
| Power Input | DC12V/DC9-36V, AC110V-240V |
| Operating Method | 5 keys keypad OSD or Remote |
| Power Consumption | Max.45W |
| Case Material | Plastic/Cool rolled steel |
| Net Weight | 5.5kg |
