More about the product
01.Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
02.Black or silver color optional
03.IP65 grade water-proof,dust-proof for front panel.
04.Working temperature:-10-60°
05.365Days*24hours all-weather working.
06.Support boot strap with electricity
07.Ultrathin front panel,embedded cabinet suitable.

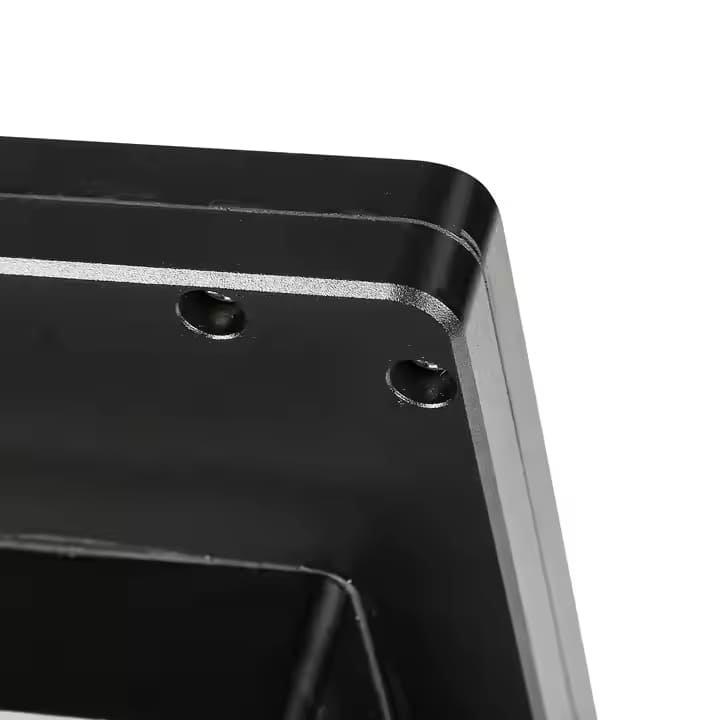

08.Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
09.Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color. 10.Compatible with various industrial systems/application.
11.Support non touch,resistive touch,capacitive touch.
12.Whole system is equipped with WI-FI module,more convennient.
13.CE,FCC,CCC,ROHS certificate.
14.Complete machine triple protection:explosion-proof, flameproof, moisture-proof.
15.Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).
16.Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.
High-Resolution Displays
high-resolution screens that provide clear and detailed visuals, essential for monitoring complex processes and data. The clarity of the display ensures that operators can easily read and interpret information, reducing the risk of errors.
Product's Features

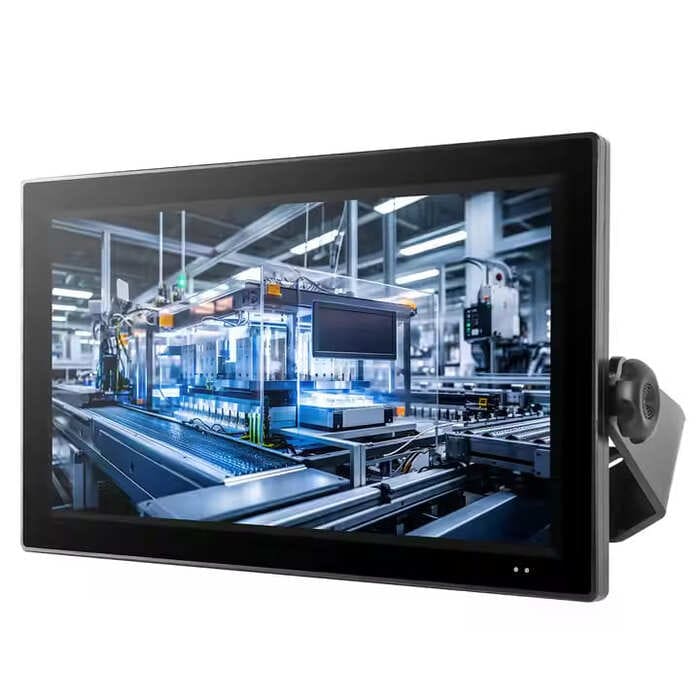

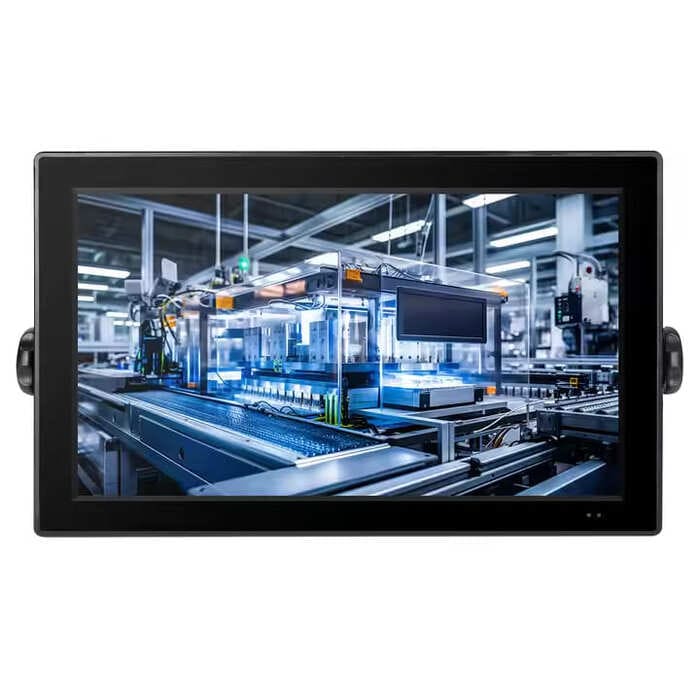

Industrial Touch Screen Monitors represent a significant advancement in the field of human-machine interaction, offering a robust and intuitive interface for monitoring and controlling industrial processes.
- Durability and Reliability: Industrial Touch Screen Monitors are constructed with rugged materials that can withstand the challenging conditions of industrial environments
- Touchscreen Interactivity: The touchscreen functionality allows for intuitive and efficient interaction with the system.
- Enhanced User Experience: The combination of a high-resolution display and touchscreen interactivity creates a user-friendly interface that improves the overall user experience.
Integration with Industrial Systems
Industrial Touch Screen Monitors are designed to integrate seamlessly with various industrial systems, including programmable logic controllers (PLCs), supervisory control and data acquisition (SCADA) systems, and human-machine interface (HMI) software. This integration allows for real-time monitoring and control of industrial processes.
Customization and Flexibility: These monitors offer a high degree of customization, allowing them to be tailored to specific industrial applications.
LCD panel( IPS screen) | |
Panel size | 15.6” 18.5” 21.5” 23.6” 27” 32” 43” 55” 65” (16:9) |
Native Resolution | 1920*1080 1366*768 3840*2160 optional |
Brightness (cd/m²) | 250cd/m2 1000cd/m2 1500cd/m2 |
Contrast ratio | 1000:1 |
View angle | 89°/89°/89°/89° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 points Projected capacitive touch |
Touch Interface | USB |
Signal Ports | |
VGA | 1×VGA |
USB | 1xUSB for touch |
HDMI | 1xHDMl |
DVI | 1XDVI |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
Power Supply | |
External Power Supply | AC 100 – 240V |
Working voltage | DC 12V |
Power consumption | ≤30W |
Operating Environment | |
Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
Relative humidity | operating: 10% to 90% , storage :5% to 90% |
Packing Details | |
Packing detail | 1pcs/box 2pieces/carton |
Accessories | Power adapter, VGA cable,HDMI cable,DVI cable, USB touch cable, Stander optional |
Others | |
Warranty | 1 year warranty |
Features and Advantages of Marine Waterproof LCD Display Touch Screen Monitor
Based on the product images provided, here are the key features and advantages of what would typically be included in a marine-grade waterproof LCD touch screen monitor:
Key Features:
Rugged Construction
IP65-rated waterproof and dustproof front panel (can withstand harsh marine environments)
Aluminum alloy design for durability and corrosion resistance
Tempered glass surface for impact resistance
Advanced Display Technology
High-definition LCD screen with LED backlight technology
Optional high brightness (for sunlight readability)
Anti-glare and anti-UV options available
Rich color reproduction and wide viewing angles
Touch Capabilities
10-point capacitive touch (multi-touch support)
Fast 5-second reaction time
Service life exceeding 50 million touches
Environmental Resistance
Wide operating temperature range (-10°C to 60°C, with customizable options)
Heat dissipation design for stable performance
Air circulation design to prevent overheating
Marine-Specific Adaptations
Waterproof front shell (critical for marine applications)
Anti-corrosion materials suitable for saltwater environments
Anti-interference design for electronic compatibility on vessels
Advantages for Marine Use:
Reliability in Harsh Conditions
Withstands salt spray, moisture, and temperature fluctuations common at sea
Resistant to vibration and shock from wave action
Enhanced Visibility
High brightness options combat sunlight glare on open water
Anti-glare treatments reduce reflections from water surface
Durability
Long service life reduces maintenance needs in remote locations
Robust construction withstands marine environmental stresses
Operational Efficiency
Responsive touch works even with wet hands or light gloves
Easy-to-clean surfaces for maintaining hygiene in marine environments
Customization Options
Can be tailored for specific marine applications (fishing, navigation, etc.)
Various size and brightness options available for different vessel requirements
These features make such displays ideal for marine applications like ship navigation systems, fishing equipment displays, offshore platform controls, and other maritime industrial uses where standard displays would quickly fail.
