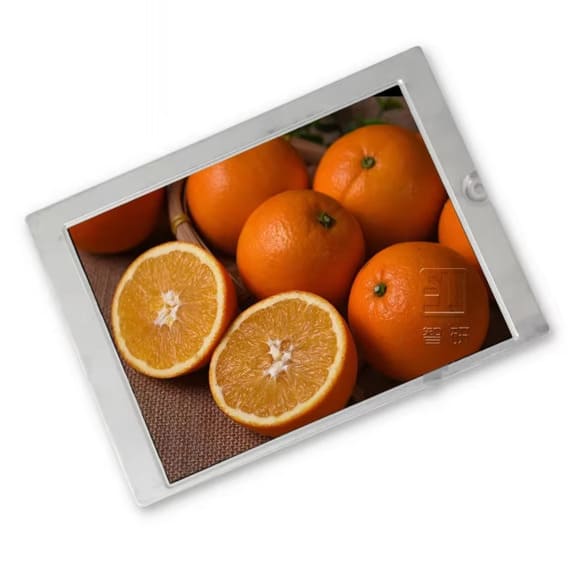

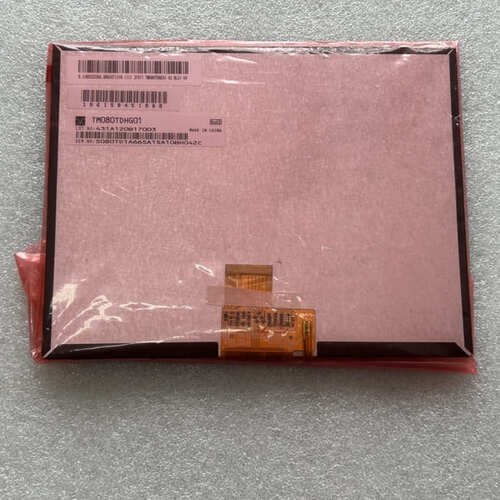

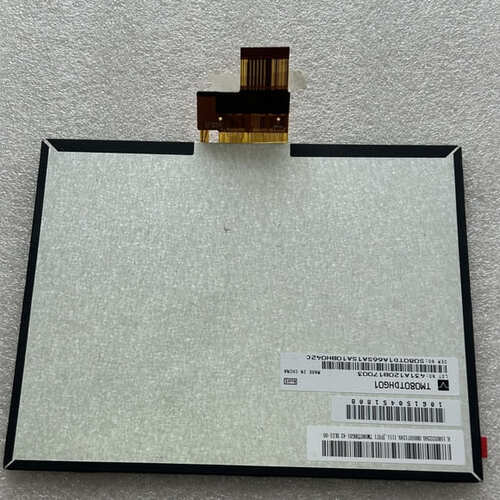

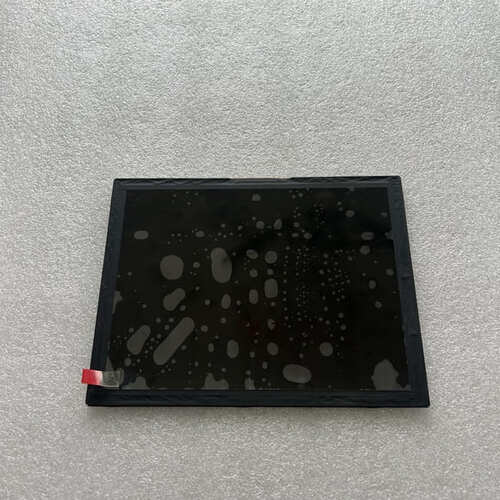

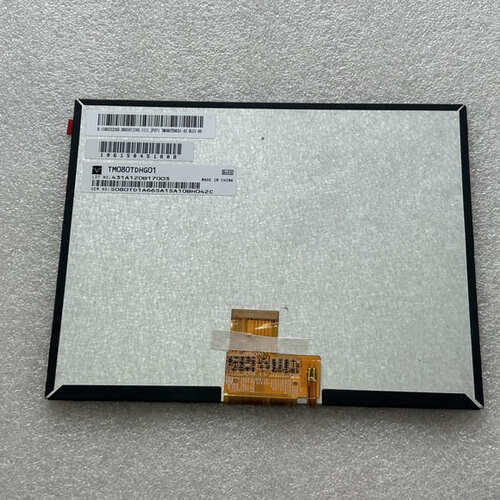

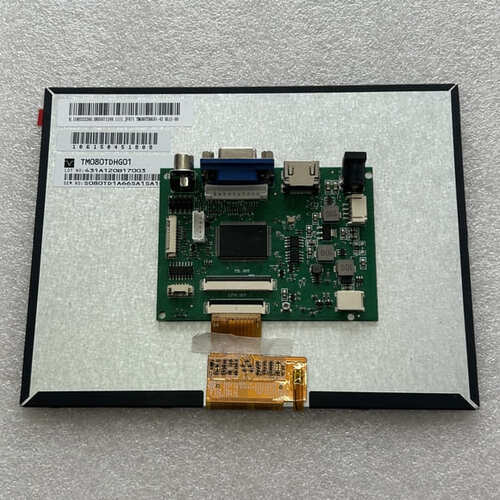

TM080TDHG01 New Original High Quality Lcd Displays 8.0 Inch 1024*768 Lcd Display Panel Screen Module in stock

An LCD module is more than just the glass panel; it’s a complete, integrated unit ready for use in a device. Its features encompass its physical characteristics, electrical interface, visual performance, and environmental robustness.

1. Core Visual Performance Features

These features directly impact the quality of the image you see.

• Resolution: The number of pixels (width x height) on the screen (e.g., 800×480, 1280×800, 1920×1080). Higher resolution means sharper images and more detail.

• Display Size: Typically measured diagonally in inches (e.g., 3.5″, 7″, 10.1″).

• Aspect Ratio: The ratio of width to height (e.g., 4:3, 16:9, 16:10). Modern displays are often widescreen (16:9).

• Brightness (Luminance): Measured in nits (cd/m²). This determines how well the screen can be viewed in bright lighting conditions. Features include:

  • Standard Brightness: ~250-300 nits for indoor use.

  • High Brightness: 500-1000+ nits for sunlight-readable applications (outdoor kiosks, industrial panels).

• Viewing Angle: The maximum angle at which the display can be viewed without significant color shift or contrast loss. Types of LCD technology define this:

  • TN (Twisted Nematic): Fast response but poor viewing angles.

  • IPS (In-Plane Switching): Excellent viewing angles (178°/178° is common) and color reproduction, making it the premium choice.

  • VA (Vertical Alignment): Good contrast and a middle ground between TN and IPS.

• Contrast Ratio: The ratio between the brightest white and the darkest black. A higher ratio (e.g., 1000:1) means more depth and better image quality.

• Backlight Type: The light source behind the LCD panel.

  • LED (Light Emitting Diode): Universal standard. Features low power consumption, long life, slim form factor, and no mercury.

  • CCFL (Cold Cathode Fluorescent Lamp): Older technology, now largely obsolete. Thicker, higher power consumption, and contains mercury.

• Color Depth: The number of bits used to represent the color of a single pixel, determining how many colors can be displayed.

  • 6-bit (262K colors): Standard for many smaller modules.

  • 8-bit (16.7M colors): True color, standard for high-quality displays.

  • Interface can also dictate this (e.g., 24-bit RGB).

• Response Time: The time it takes for a pixel to change from one color to another, measured in milliseconds (ms). Lower values (e.g., 5ms) are better for fast-moving video to prevent motion blur.

2. Physical and Mechanical Features

These define the module’s form factor and construction.

• Outline Dimensions: The exact physical width, height, and depth (including the PCB and connectors) of the entire module.

• Active Area: The actual area of the screen that displays the image.

• Bezel: The frame around the display. Can be very narrow for modern, sleek designs or wider for industrial robustness.

• Surface Treatment:

  • Polarizer: An anti-glare (matte) finish diffuses reflections, ideal for brightly lit environments.

  • Optical Bonding: A resin is applied between the touch panel and LCD, and sometimes between the LCD layers themselves. This reduces internal reflections, improves sunlight readability, increases durability, and prevents condensation.

• Mounting: Includes holes and brackets for securing the module into a housing or device.

• Weight: Important for portable and handheld applications.

3. Interface and Control Features

How the module connects to and is controlled by the main system (e.g., Arduino, Raspberry Pi, custom PCB).

• Interface Type: How video data is sent to the module.

  • Parallel RGB/LVDS: Common in embedded systems and larger TFTs.

  • MIPI DSI: High-speed, low-power serial interface common in smartphones and modern SBCs.

  • SPI: Simple, low-speed interface used for small, monochrome, or low-color displays (e.g., 128×64 OLED-like, but also some color TFTs).

  • HDMI/MIPI DSI: Input for receiving direct video signals.

• Controller Board (Driver IC): Most modules include a controller that handles the complex signals needed to drive the LCD. The main board only needs to send simple commands and data.

• On-Chip Memory (GRAM): The controller has its own memory to hold the frame buffer, freeing up the main microcontroller’s resources.

• Command Set: Most controllers accept standard commands (e.g., ST7789, ILI9341) which are well-supported by libraries.

4. Input and Touch Features

Many LCD modules integrate touch functionality.

• Touch Panel Technology:

  • Resistive: Pressure-activated. Low cost, can be used with a stylus or glove, but less durable and only single-touch.

  • Capacitive (Projected Capacitive – PCAP): Finger-activated. Supports multi-touch gestures (pinch, zoom), high clarity, and is highly durable. The modern standard for consumer devices.

• Touch Controller Interface: How touch data is sent back to the host (e.g., I²C, SPI).

5. Environmental and Reliability Features

Crucial for industrial, automotive, and medical applications.

• Operating Temperature Range: The range of temperatures within which the module will function correctly (e.g., -20°C to +70°C for commercial, -40°C to +85°C for industrial/automotive).

• Storage Temperature Range: The range for safe non-operation.

• IP Rating (Ingress Protection): Rates the module’s protection against dust and water (e.g., IP65 for dust-tight and protection against water jets). This usually requires a special seal.

• MTBF (Mean Time Between Failures): A reliability prediction, often in hours, indicating the expected operational life.

6. Additional Features

• Built-in Features: Some modules include speakers, microphones, or light sensors.

• Software Support: Availability of drivers, libraries (for Arduino, PlatformIO, etc.), and example code.

Summary Table of Key Features
