Industrial LCD monitors are essential components in various automation, manufacturing, and control systems. Among the different types available, metal case open-frame industrial LCD monitors stand out due to their durability, modularity, and adaptability to harsh environments. These monitors are designed for seamless integration into industrial equipment, kiosks, medical devices, and other applications where reliability is critical.
High Performance in Harsh Environments

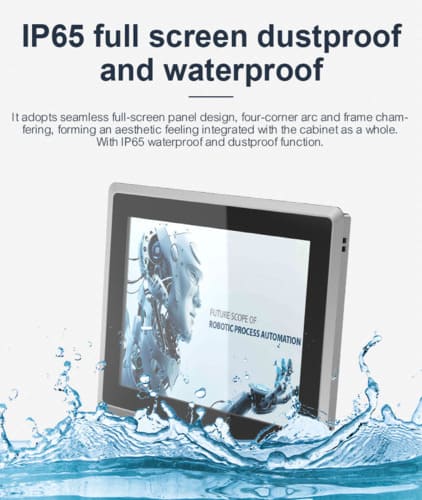

Wide temperature ranges (often from -20°C to 55°C) High humidity and dust exposure (conforming to IP65 or higher ratings) Vibration and shock resistance (critical for automotive and factory automation)
Product's Features
Industrial lcd monitors are designed to be integrated into larger systems. Their slim, bezel-less design allows them to fit into control panels, machinery, and enclosures without requiring additional housing.
- HD Panel, Clear Presentation LED Backlight.
- Touchscreen compatibility (resistive or capacitive)
- Input/output interfaces (HDMI, VGA, DVI, or industrial communication ports)
Modular and Customizable Design
Industrial Grade Rugged Design
High brightness (500-1500 nits) for visibility in sunlight or bright factory conditions Wide viewing angles (IPS/PLS panels) for consistent image quality from different positions Anti-glare and anti-reflective coatings to reduce eye strain in high-light environments

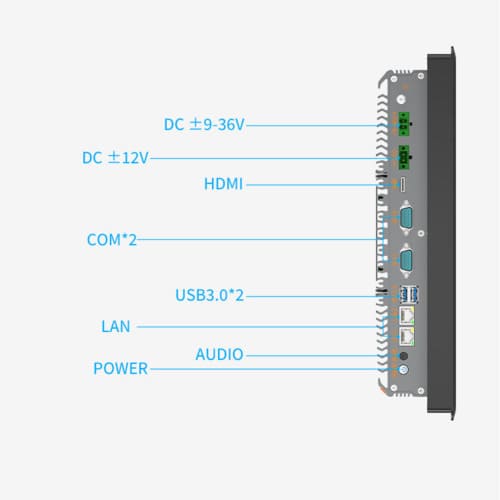

HORAP Industrial PC | HORAP10 | HORAP12 | HORAP15 | HORAP17 | HORAP19 | |
Motherboard | Confirmuration | J6412,i3-7100U,i5-7200U,DDR4-4GB,SSD-128GB | ||||
Interface | WiFi,3/4G module | 802.11b/g/n(optional), Support3g/4g(optional) | ||||
HDMI | 1*HDMI output | |||||
USB | 2*USB3.0，2*USB2.0 | |||||
Network | 2*RJ45 with 1000 Base-T | |||||
Com | com(RS485)*2 | |||||
Power supply | 1*DC lock phoenix terminal, Support 9-36V | |||||
Audio output | 1*3.5mmaudio | |||||
Other | 8*GPIO(optional) | |||||
Display | Screen type | 10.4 LCD | 12.1 LCD | 15 LCD | 17 LCD | 19 LCD |
Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 | |
Contrast ratio | 1000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | |
Brightness | 200cdm2 | 200cdm2 | 250cdm2 | 250cdm2 | 250cdm2 | |
Brightness Optional | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | |
Screen ratio | 4:3 | 4:3 | 4:3 | 5:4 | 5:4 | |
Structure | Front and back cover | Aluminum | ||||
Craft | Glass frame paste, aluminum die casting | |||||
Color | Black, grey | |||||
Heat dissipasion | Fanless aluminum fin heat dissipation | |||||
Panel indicator light | Power state, hard disk state | |||||
Whole size | 281*228*67.2mm | 314.9*253.7*67.2mm | 370*294*68.2mm | 404*341*69.2mm | 445*375*72.2mm | |

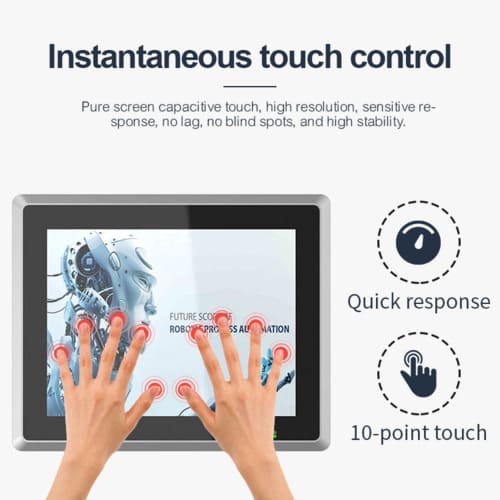

Touch screen | Type | Projected capacitive touch screen | ||||
Touch point | 10 point touch | |||||
Physical Resolution | 4096×4096 | |||||
Response time | <5ms | |||||
Accuracy | <2.5mm | |||||
Transparency | ≥90% | |||||
Protection | The surface is coated with 1:1 PVC protective film | |||||

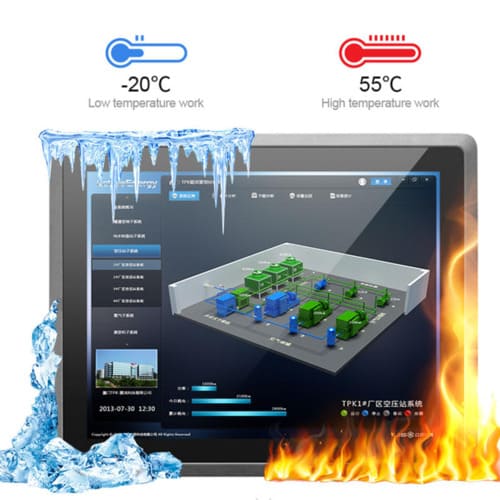

Others | Working environment | -20℃~70℃; Humidity: 10%~90% | ||||
Storage environment | Temperature: -40℃~80℃; Humidity: 10%~90% | |||||
Installation ways | Embedded、VESA100*100mm | |||||
Power consumption | 24W | 25W | 33W | 34W | 37W | |
Accessories | Manual | User Manual, certificate of qualification, warranty card | ||||
Bracket | wall mounted bracket, embedded bracket, desktop bracket(optional) | |||||
Adapter | Power adapter | |||||
Applications of Industrial LCD Monitors
1. Industrial Automation & Control Systems

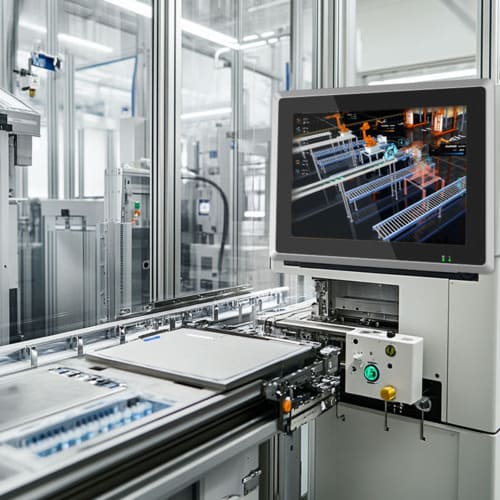

Used in HMIs (Human-Machine Interfaces) for factory automation, CNC machines, and robotic systems, these monitors provide real-time data visualization and control.
2. Medical and Laboratory Equipment
Due to their resistance to chemical exposure and sterilization processes, they are ideal for medical imaging devices, diagnostic machines, and surgical equipment.
3. Transportation and Fleet Management
Deployed in avionics, marine navigation, and vehicle dashboards, these monitors ensure readability under varying lighting conditions.
4. Self-Service Kiosks and Digital Signage
Their durability and sleek design make them suitable for ATMs, ticketing machines, and interactive information displays in public spaces.
5. Military and Defense Systems
The EMI shielding and ruggedness of metal-case monitors make them reliable for defense applications, including command centers and armored vehicle displays.
